Streams

Description

NTFS offers a devious mechanism known as Alternate Data Streams (ADS) useful primarily for obfuscating data. The operating system may use it for stashing thumbnails of images (see below), storing Summary property data for non-Office file types, or simply flagging files that were downloaded from the Internet (so that it may forever pester you about do you really want to open that?).

As little known as ADS themselves are, even less well-known is that ClassicVB can pretty much manipulate ADS at will using dirt-standard file i/o functions. Every file has a primary unnamed data stream, and each alternate data stream has a name by which it is referenced. This is done by separating the filename and the stream name with a colon. Here's an example of how easy it is to read and write ADS in Classic VB:

Color-coded with vbMarkUp - try it today!
Public Sub Main()
   Call WriteFile("C:\test.txt", "This is a normal data stream.")
   If WriteFile("C:\test.txt:MyADS", "This is an ADS.") Then
      Debug.Print ReadFile("C:\test.txt:MyADS")
   End If
End Sub

Public Function ReadFile(ByVal FileName As String) As String
   Dim hFile As Long
   On Error GoTo Hell
   hFile = FreeFile
   Open FileName For Binary As #hFile
      ReadFile = Space$(LOF(hFile))
      Get #hFile, , ReadFile
   Close #hFile
Hell:
End Function

Public Function WriteFile(ByVal FileName As String, _
      ByVal Text As String) As Boolean
   Dim hFile As Long
   On Error GoTo Hell
   hFile = FreeFile
   Open FileName For Output As #hFile
   Print #hFile, Text;
   Close #hFile
Hell:
   WriteFile = Not CBool(Err.Number)
End Function

This sample provides a drop-in ready class you can use to enumerate ADS within any file or folder on an NTFS disk. Yes, folders can have ADS as well, though they never have the unnamed primary data stream. To use the CStreams class, you simply declare an instance of it, and hand it a filename to work with. Here's an example taken from the little demo app I put together to show off the features of the CStreams class:

Color-coded with vbMarkUp - try it today!
Dim lvItem As ListItem
Dim i As Long
' Look for ADS content in this file.
ads.FileName = FileSpec
If ads.Count > 1 Then
   For i = 0 To ads.Count - 1
      Set lvItem = lvFiles.ListItems.Add(, , ads.FileName)
      lvItem.SubItems(1) = ads.PrettyName(i)
      lvItem.SubItems(2) = dda.FormatBytes(ads.StreamSize(i))
   Next i
End If

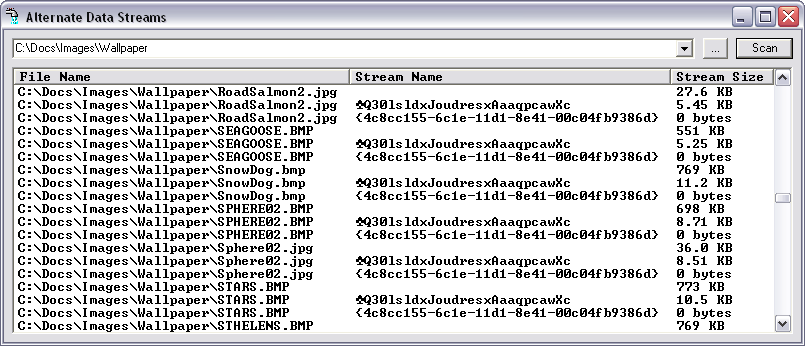

The code above is passed each filename in an enumeration, and if that particular file contains streams other than the primary named stream they are each added to a listview for display:

Here we see that Windows has tagged each image file with two ADS, including one that uses Chr$(5) as it's lead character so I had to switch to an OEM stock font to view the name properly. (To switch fonts using the demo, just right-click on the listview.)

The CStreams class is very simple, and offers only a few properties and methods. Since a given file or folder may contain any number of ADS, the class offers information about any particular ADS by index (0 to Count-1). Here's a summary of the CStreams interface:

Count Property Returns the number of ADS within a file or folder. (read-only)
FileName Property Sets or returns the name of the file or folder being enumerated for ADS.
FullPathName Method Wrapper around the GetFullPathName API, used to disambiguate relative pathspecs.
KillStream Method Deletes an ADS from any file or folder, by Index.
Refresh Method Updates all cached ADS info for given file or folder. Called automatically when FileName property is assigned.
PrettyName Property Returns the "cleaned-up" name of a given ADS by stripping off the leading colon and the trailing (superfluous) ":$DATA" tail, by Index. (read-only)
StreamIndex Property Returns the Index for an ADS of any given name. Useful for testing whether a known stream name exists in a file or folder. (read-only)
StreamName Property Returns the name of any ADS in a file or folder, by Index. (read-only)
StreamSize Property Returns the size (in bytes) of any ADS in a file or folder, by Index. (read-only)
StreamSupport Method Returns boolean that indicates whether ADS support is available for a given FileName.

Bonus Material

This sample comes with lots of little extras, including a highly optimized recursive file search class (CDirDrillAPI) and a module that offers easy folder browsing (MFolderBrowse). Both of those are also directly usable in VBA as well as either VB5 or VB6.

Published

This sample, or the one from which it originally derived, was published (or at least peripherally mentioned) in the following article(s):

APIs Usage

This sample uses the following API calls:

Module Library Function
CDirDrillAPI.cls kernel32





shlwapi






 FindClose
FindFirstFile
FindNextFile
GetCurrentDirectory
GetFileAttributes
RtlMoveMemory
PathCanonicalizeW
PathCombineW
PathIsDirectoryW
PathIsRelativeW
PathMatchSpecW
PathRemoveBackslashW
PathRemoveExtensionW
PathStripPathW
CStreams.cls advapi32


kernel32








ntdll		 AdjustTokenPrivileges
LookupPrivilegeValue
OpenProcessToken
CloseHandle
CreateFile
DeleteFile
GetCurrentProcess
GetFileAttributes
GetFullPathName
GetVolumeInformation
lstrlen
RtlMoveMemory
NtQueryInformationFile
MFolderBrowse.bas kernel32





ole32
shell32



user32		 GetVersionEx
LocalAlloc
LocalFree
lstrcpy
lstrlen
RtlMoveMemory
CoTaskMemFree
SHBrowseForFolder
SHGetPathFromIDList
SHGetSpecialFolderLocation
SHSimpleIDListFromPath
SendMessage
MStockFont.bas gdi32

user32		 DeleteObject
GetStockObject
SendMessage

Don't see what you're looking for? Here's a complete API cross-reference.

Download

Download Streams.zip   Please, enjoy and learn from this sample. Include its code within your own projects, if you wish. But, in order to insure only the most recent code is available to all, I ask that you don't share the sample by any form of mass distribution.

Download Streams.zip, 42Kb, Last Updated: Tuesday, November 3, 2009
